1970 AMC AMX

research

Overview


American Motors 1970 AMX advertising headlined, "We made the AMX look tougher this year because it's tougher this year".


American Motors 1970 AMX advertising headlined, "We made the AMX look tougher this year because it's tougher this year". They were mildly face-lifted resembling the first two model years, but the changes were different enough to be a separate design for 1970. Featured was a new front end design with a longer hood that had a “power blister” with two large openings. These were a functional cold ram-air induction system with the popular "Go Package" available with the 360 and 390 engines. The new grille was flush and full-width incorporating the headlamps. The revised rear end also featured full-width tail lamps and a single center mounted backup light. Side marker lights were now shared with several other AMC models. Riding on the same wheelbase 97-inch as before, the changes increased the AMX's overall body length by about two inches to 179 in.

American Motors also changed the AMX's engine lineup for 1970 with the introduction of a new 360 cu in four-barrel (290 hp P-code) to replace the 343 V8. The smallest 290 was dropped and AMC could claim 65 more base horsepower than the AMXs had previously. The 390 V8 engine continued, but upgraded to new heads with 51 cc combustion chambers that gave 325 hp. The code remained "X" for the engine on the vehicle identification number (VIN). The "Go package" was available with the 360 engine (including power front disc brakes, F70x14 raised white letter tires, handling package, and the ram-air induction system) for $298.85, or including the 390 engine for $383.90.

Also new, the double-wishbone front suspension had ball joints, upper and lower control arms, coil springs and shock absorbers above the upper control arms; as well as trailing struts on the lower control arms. The "Magnum 500" road wheels were now standard, but the new "Machine" 15x7 inch slot-styled wheels were optional.

The interiors of the AMX were also redesigned. The broad wood-grained dashboard, center console, and two-spoke "Rim Blow" steering wheel were new. Tall bucket seats now featured a "clamshell" design integrating the headrests. Leather upholstery was $34 extra. The exterior rear view mirror featured a new design and in some cases matched the car's body color. The three "Big Bad" exterior paints continued to be optional on the 1970 AMXs, but they now came with regular chrome bumpers. A new "shadow mask" exterior finish applied over any available AMX color was a $52 option, which included a satin black-painted hood, engine compartment, front fender tops, and side window surrounds offset by thin silver striping. The optional "C-stripe" was $32.

The manufacturer's suggested retail price (MSRP) for the base model was $3,395 as AMC promoted the 1970 AMX as, "A sports car for the price of a sporty car."

Motor Trend summed up a road test of a 1970 AMX with the 390 engine as "one of better constructed cars around." Described as “the best version yet of this blend of muscle car and sports car”, the 1970 model was also the last “true AMX”.


Production Numbers


AMX 4,116
Total Production 4,116

Performance Specs


Engine Size Carb. HP Torque 0 to 60 Quarter mile
360ci V8 360ci 1x4bbl 290hp 395 lb-ft - -
390ci V8 390ci 1x4bbl 325hp 425 lb-ft 6.56 sec 14.68 @ 92.0 mph

Transmission


  • 4-Speed Manual Borg Warner
  • "Shift-Command" 3-Speed Automatic Transmission

Paint & Colors


Exterior

Electric Blue
Big Bad Blue
Big Bad Orange
Big Bad Green
Matador Red
Hialeah Yellow
Frost White
Bittersweet Orange
Bayshore Blue
Commodore Blue
Sea Foam Aqua
Mosport Green
Glen Green
Golden Lime
Tijuana Tan
Moroccan Brown
Sonic Silver
Classic Black

Interior

Black
Blue
Brown
Green
Red

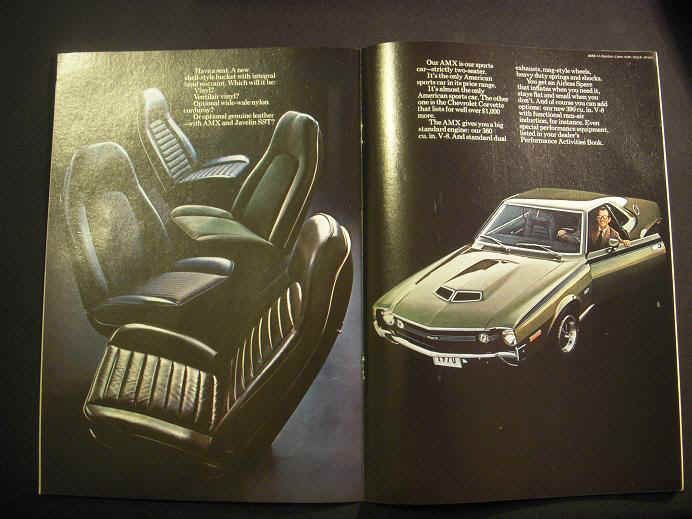

OEM Brochures
