1969 Shelby Mustang

research

Overview


The 1969 Shelby Mustang was now based on the new sportsroof and convertible Mustang body styles, but resembled the Ford Mustang very little.


The 1969 Shelby Mustang was now based on the new sportsroof and convertible Mustang body styles, but resembled the Ford Mustang very little. The GT350 and GT500 were still available in both fastback and convertible.

Taillights from a '65 Thunderbird were used, and the front fenders and hood were fiberglass with two 7-inch headlights mounted to the front. The usual stipes were found and Cobra emblems.

The interior of the Shelby was once again the production Mustang's Deluxe Interior Decor Group, available in either black or white.

The GT350 came with the 290 hp version of the production 351 Windsor. The only difference being an aluminum intake manifold. The GT500 used the 428CJ-R.

Around 789 1969 Shelbys went unsold, so they were updated with new VINs, twin black hood stripes, and a Boss 302 type chin spoiler for the 1970 year.

Production Numbers


GT 350 Fastback 935
GT 350 Convertible 194
GT 500 Fastback 1,153
GT 500 Convertible 335
GT 500 Fastback Hertz 150
Barrier Test & Protype 3
Total Production 2,770

Performance Specs


Engine Size Carb. HP Torque 0 to 60 Quarter mile
GT 350 Ram-Air 351ci 1x4bbl 290 at 4800 rpm 385 lb-ft at 3400 - -
GT 350 Base 320ci 1x4bbl 220 at 4600 rpm 300 lb-ft at 2600 - -
GT 500 Ram-Air 428ci 1x4bbl 335 at 3200 rpm 440 lb-ft at 3400 6.0 sec 14.0 sec at 102 mph

Transmission


  • 4-Speed Manual
  • 4-Speed Manual (Close Ratio)
  • 3-Speed Auto (Cruise-O-Matic)

Paint & Colors


Exterior

Acapulco Blue
Black Jade
Silver Jade
Gulfstream Aqua
Pantel Gray
Candy Apple Red
Royal Maroon
Grabber Blue
Grabber Green
Grabber Yellow
Grabber Orange

Interior

Black
White

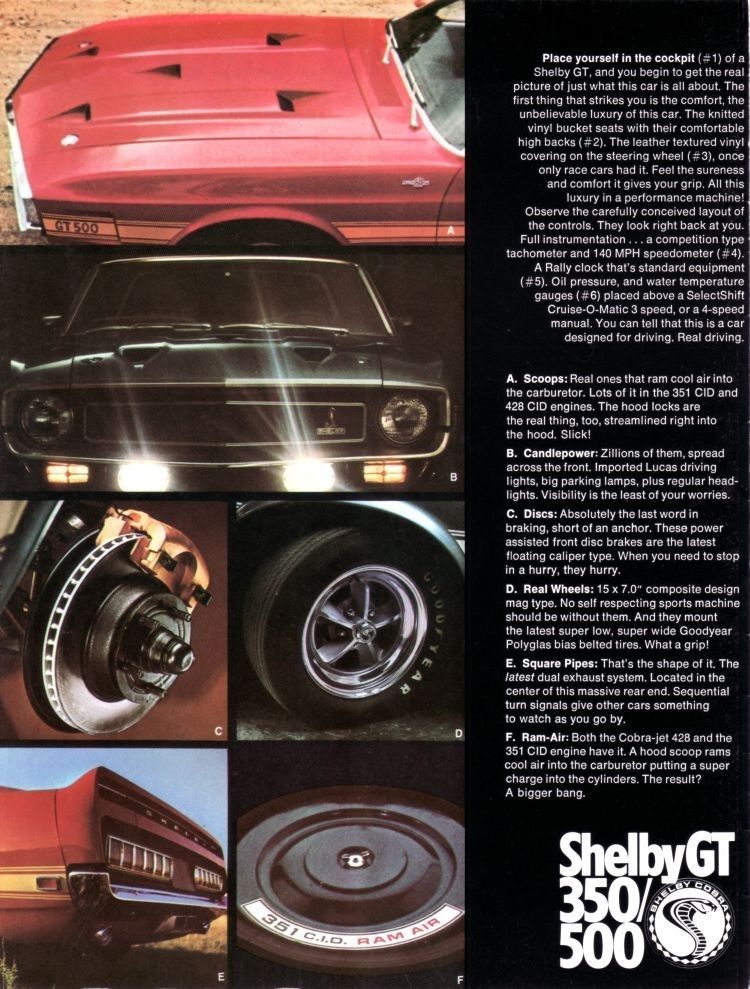

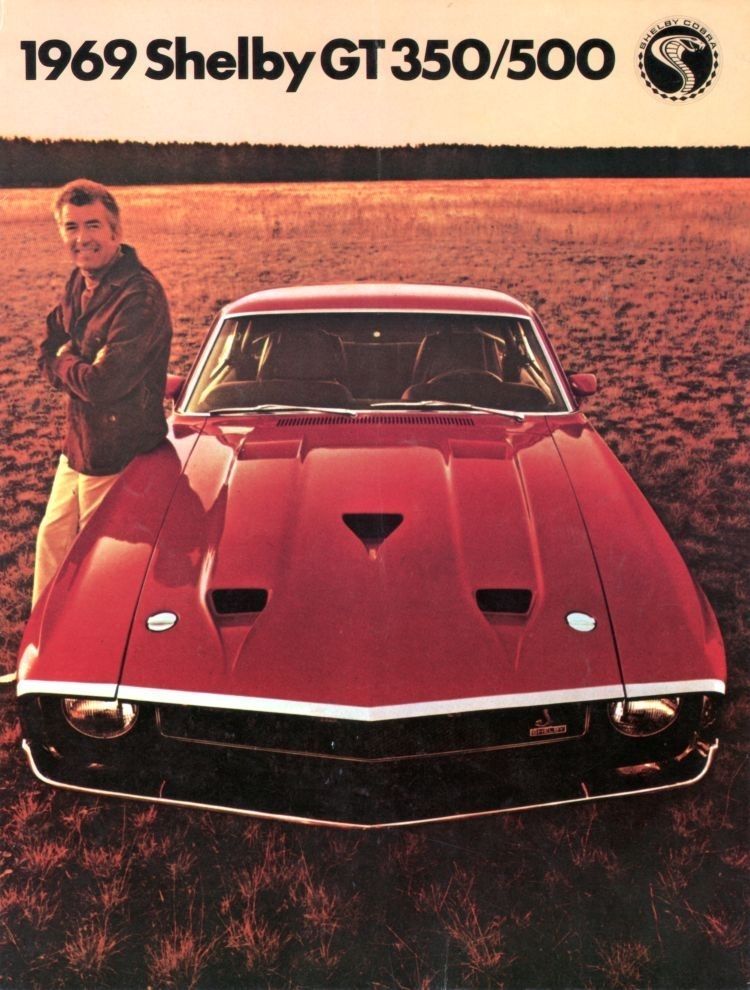

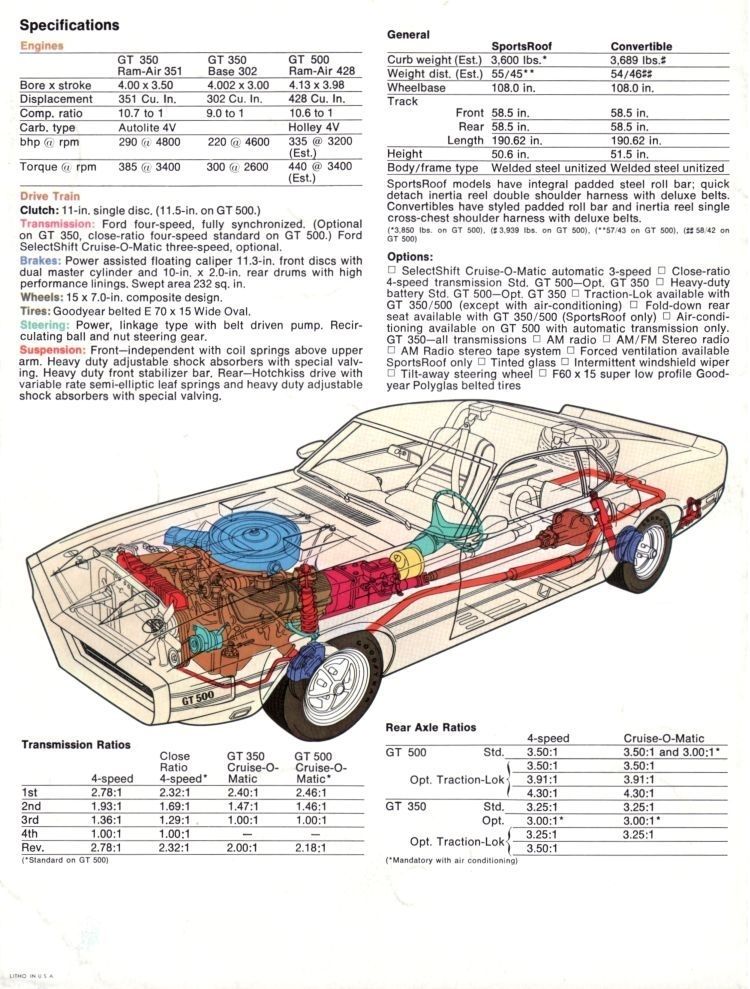

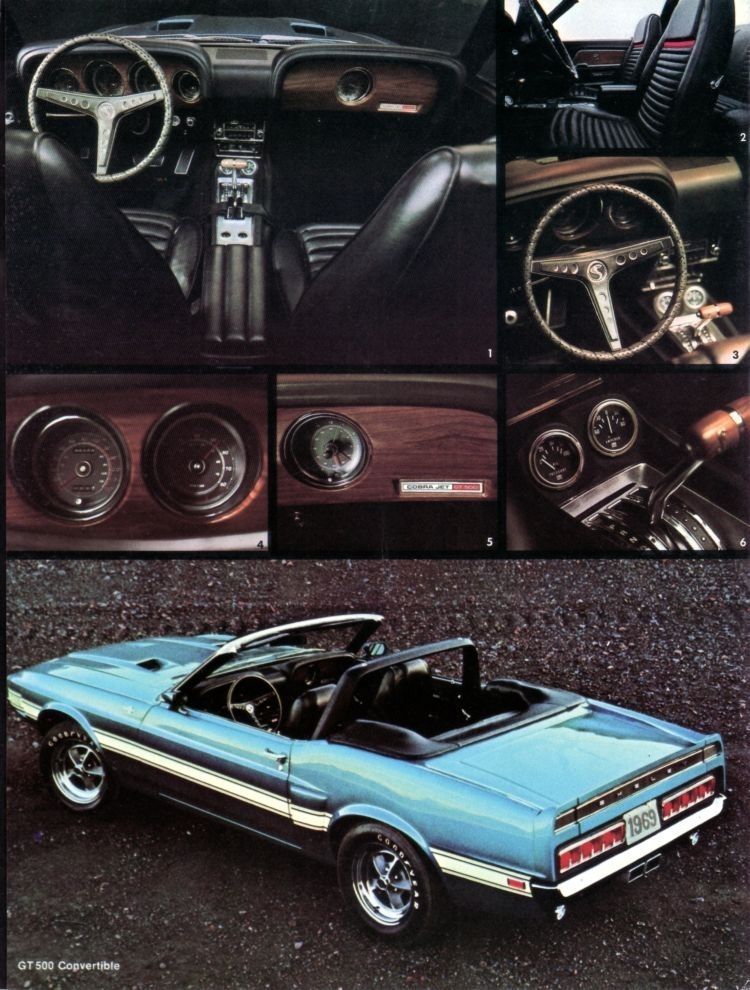

OEM Brochures
